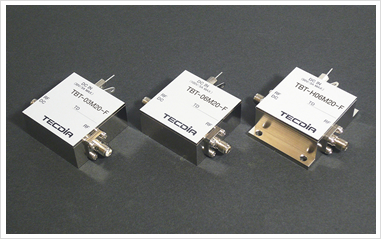

宽频带、高电流Bias-T
TBT 系列
产品规格

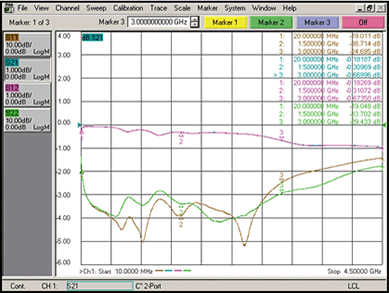

Bias-T Model | ||||
TBT-03M20-F | ||||
Impedance | 50Ω | |||
Frequency Range | 20MHz~3GHz | |||
20~50MHz | 50MHz~2GHz | 2~3GHz | ||
VSWR (Return Loss) | 1.4 max. | 1.22 max. | 1.28 max. | |
(15.5dB min.) | (20dB min.) | (18dB min.) | ||
Insertion Loss | 0.5dB max. | 0.8dB max. | ||
Connectors | RF | SMA (Female) | ||
DC | Feedthru | |||
RF Power | 10W max. | |||
Bias Current | 5A max. | |||
Bias Voltage | 30V max. | |||
Dimensions * | 38×38×18mm | |||
Weight | 60g | |||
Temperature | 0℃~ +40℃ |
*不包括连接器

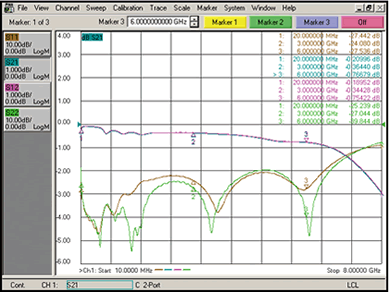

Bias-T Model | |||||

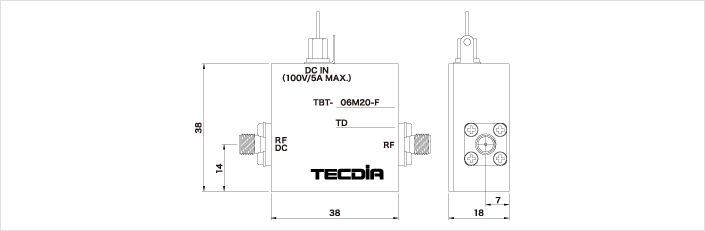

TBT-06M20-F | |||||
Impedance | 50Ω | ||||
Frequency Range | 20MHz~6GHz | ||||
20~50MHz | 50MHz~2GHz | 2~3GHz | 3~6GHz | ||
VSWR (Return Loss) | 1.4 max. | 1.22 max. | 1.28 max. | 1.4 max. | |
(15.5dB min.) | (20dB min.) | (18dB min.) | (15.5dB min.) | ||
Insertion Loss | 0.8dB max. | 1.0dB max. | |||
Connectors | RF | SMA (Female) | |||
DC | Feedthru | ||||
RF Power | 10W max. | 8W max. | |||
Bias Current | 5A max. | ||||
Bias Voltage | 100V max. | ||||
Dimensions * | 38×38×18mm | ||||
Weight | 65g | ||||
Temperature | 0℃~ +40℃ |
*不包括连接器

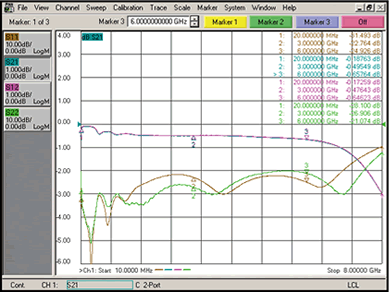

Bias-T Model | |||||

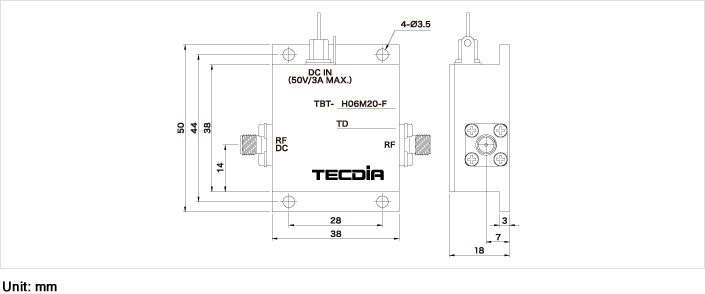

TBT-H06M20-F | |||||
Impedance | 50Ω | ||||
Frequency Range | 20MHz~6GHz | ||||
20~50MHz | 50MHz~2GHz | 2~3GHz | 3~6GHz | ||
VSWR (Return Loss) | 1.4 max. | 1.22 max. | 1.28 max. | 1.4 max. | |
(15.5dB min.) | (20dB min.) | (18dB min.) | (15.5dB min.) | ||
Insertion Loss | 0.8dB max. | 1.0dB max. | |||
Connectors | RF | SMA (Female) | |||
DC | Feedthru | ||||
RF Power | 25W max. | ||||
Bias Current | 3A max. | ||||
Bias Voltage | 50V max. | ||||
Dimensions * | 50×38×18mm | ||||
Weight | 70g | ||||
Temperature | 0℃~ +40℃ |
*不包括连接器
